TECHNICAL SPECIFICATION
Code: AP19997
Model: Rhinocomfort 3
Diameter: 160 mm

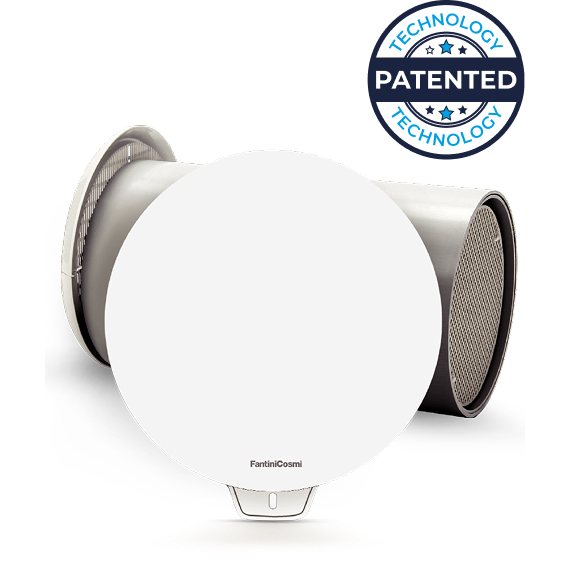

RHINOCOMFORT 3
Single-Room Heat Recovery Unit with Advanced Air Sanitisation
RHINOCOMFORT 3 is a next-generation MVHR unit that not only ventilates and recovers heat, but also sanitises incoming outdoor air through a zero-ozone photocatalysis process.
This provides homes and commercial spaces with a constant supply of clean, healthy and temperature-balanced air without needing to open windows.
| Mode / Speed | Airflow (m³/h) | Power (W) | Supply | Sound Pressure dB(A) @ 1.5 m |
|---|---|---|---|---|
| Low (Speed 1) | 30 | 3 | 110–230V~ 50/60Hz | 20.5 |
| Medium (Speed 2) | 50 | 5 | 110–230V~ 50/60Hz | 29.5 |
| High (Speed 3) | 75 | 8 | 110–230V~ 50/60Hz | 37.0 |
| Sleep Mode | 15 | 2.5 | 110–230V~ 50/60Hz | n.d. |
| Boost Speed | 100 | 20 | 110–230V~ 50/60Hz | 45.8 |
How RHINOCOMFORT 3 Purifies Air
Using a patented photocatalytic system activated by high-power UVA and UVC LEDs, RHINOCOMFORT 3 breaks down harmful substances at a molecular level.
It:
- Eliminates up to 99.6% of bacteria and viruses
- Reduces PM2.5, PM10 and VOC levels
- Helps prevent mould and humidity build-up
- Ensures zero ozone emissions
Key Features
- 160 mm nominal diameter
- High-efficiency regenerative ceramic heat exchanger (up to 90% heat recovery)
- Integrated sensors: humidity, air temperature, air quality (iAQ), twilight
- Low-consumption DC brushless motor
- ISO Coarse filtration (UNI EN ISO 16890:2017)
- Wall-mounted with telescopic PVC duct (25–53 cm wall thickness)
- Quiet operation starting from 20.5 dB(A)
- Summer free-cooling function
- IPX4 protection rating
Applications
RHINOCOMFORT 3 is ideal for spaces that require continuous ventilation and purified air, such as:
- Homes and apartments
- Schools and crèches
- Offices and meeting rooms
- Commercial buildings
- Cafés and restaurants
- Nursing homes and healthcare environments
