ECOCOMFORT 3

Single-room MVHR with smart sensors, heat recovery up to 90%, Wi-Fi/Bluetooth connectivity, and intelligent comfort management.

ECOCOMFORT 3 is a latest-generation single-room ventilation unit designed to keep indoor air fresh and healthy while minimising energy waste.

ECOCOMFORT-3-scheda-tecnica-EN

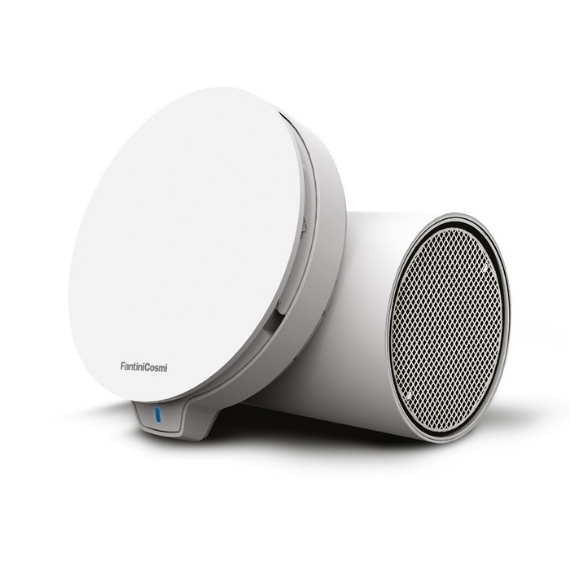

RHINOCOMFORT 3SINGLE-ROOM MVHR WITH AIR SANITIZATION

Advantages

ECOCOMFORT 3 delivers an advanced approach to indoor air quality by continuously monitoring:

  • Humidity
  • Indoor air quality (iAQ)
  • Temperature
  • Light levels

Its integrated intelligence automatically selects the ideal ventilation mode, helping prevent mould, reduce humidity, and improve air quality — all with very low energy consumption.

  • Automatically adapts airflow using onboard sensors
  • Real-time monitoring of indoor temperature, humidity, air quality, and energy consumption via the Intelliclima+ App
  • Regenerative ceramic heat exchanger recovers up to 90% of heat from outgoing air, reducing thermal loss and energy bills
  • Full control via Bluetooth (local) or Wi-Fi (remote) using the Intelliclima+ App

General features

  • Nominal diameter: Ø160 mm
  • Multi-connectivity: Wi-Fi 2.4 GHz + Bluetooth Low Energy 5.0
  • Sensors: humidity, air quality (eCO₂), temperature, twilight
  • Up to 90% heat recovery efficiency
  • Suitable for rooms and ducting up to 3 linear metres
  • Ultra-low-consumption DC brushless motor
  • Suitable for wall thickness 23–53 cm with telescopic tube
  • Low noise levels starting from 20.5 dB(A) at 1.5 m (Speed 1)
  • Protection rating: IPX4

TECHNICAL SPECIFICATION

Code: AP19996

Model: ECOCOMFORT 3

Diameter: Ø160 mm

Mode Airflow (m³/h) Power Consumption dB(A) @ 1.5 m dB(A) @ 3 m
Low 30 3 W 20.5 15.0
Medium 50 5 W 29.5 23.5
High 75 8 W 37.0 31.5
Sleep 15 2.5 W n.d. n.d.
Boost 100 20 W 45.8 40.5

Accessories and Spare Parts

  • AP1984 – FR007: ISO Coarse class filters (UNI EN ISO 16890:2017)
  • AP1985 – FR008: Acoustic, thermal and anti-condensation insulation panel
  • AP1613 – GAP 150: Windproof and rainproof grille
  • AP19881 – SLF160: External noise reduction kit

Installation

ECOCOMFORT 3 units must be installed on perimeter walls. Thanks to the telescopic tube, the system can be fitted into wall thicknesses ranging from 23 cm* to 53 cm.

Installation is quick and straightforward due to the expandable external grille, which can be mounted entirely from inside the property.
